superspectral force

The Force of Truth in
Every Pixel

Real-Time
Autofocus

Up to 4-6 Hours of Illumination

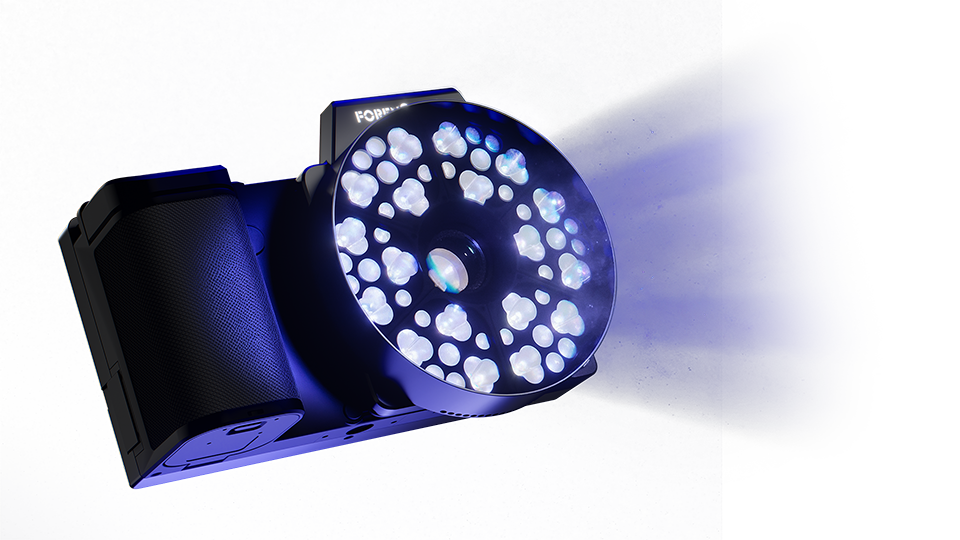

SUPERSPECTRAL FORCE HERO 1
0 Million
Wavelength
Combinations
UV / VIS / IR
Sensor
0 + MP
Superspectral Ultra High
Resolution Camera
The World Leader in
Forensic Imaging
superspectral force

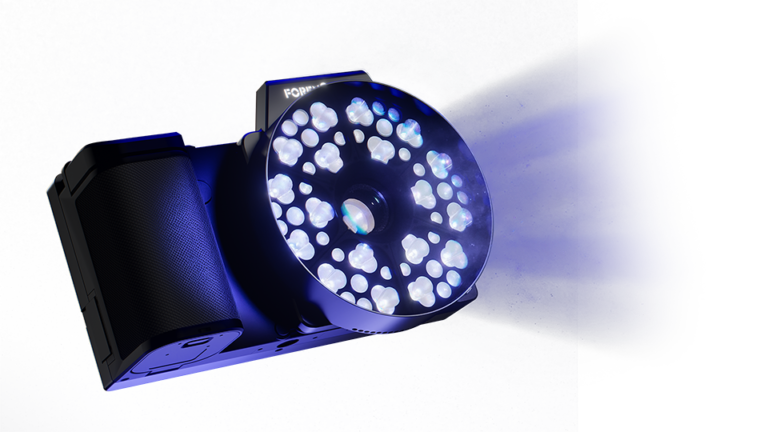

SUPERSPECTRAL FORCE HERO 1

The Force of Truth in
Every Pixel

0 + MP
Superspectral Ultra High
Resolution Camera
Real-Time Autofocus
Battery, Up to 4-6 Hours of Illumination
0 Million
Wavelength Combinations
UV / VIS / IR
200 MP Sensor

Sapphire Protective Glass

Built to endure daily exposures such as dust and water.

All in One

Portable & Lightweight

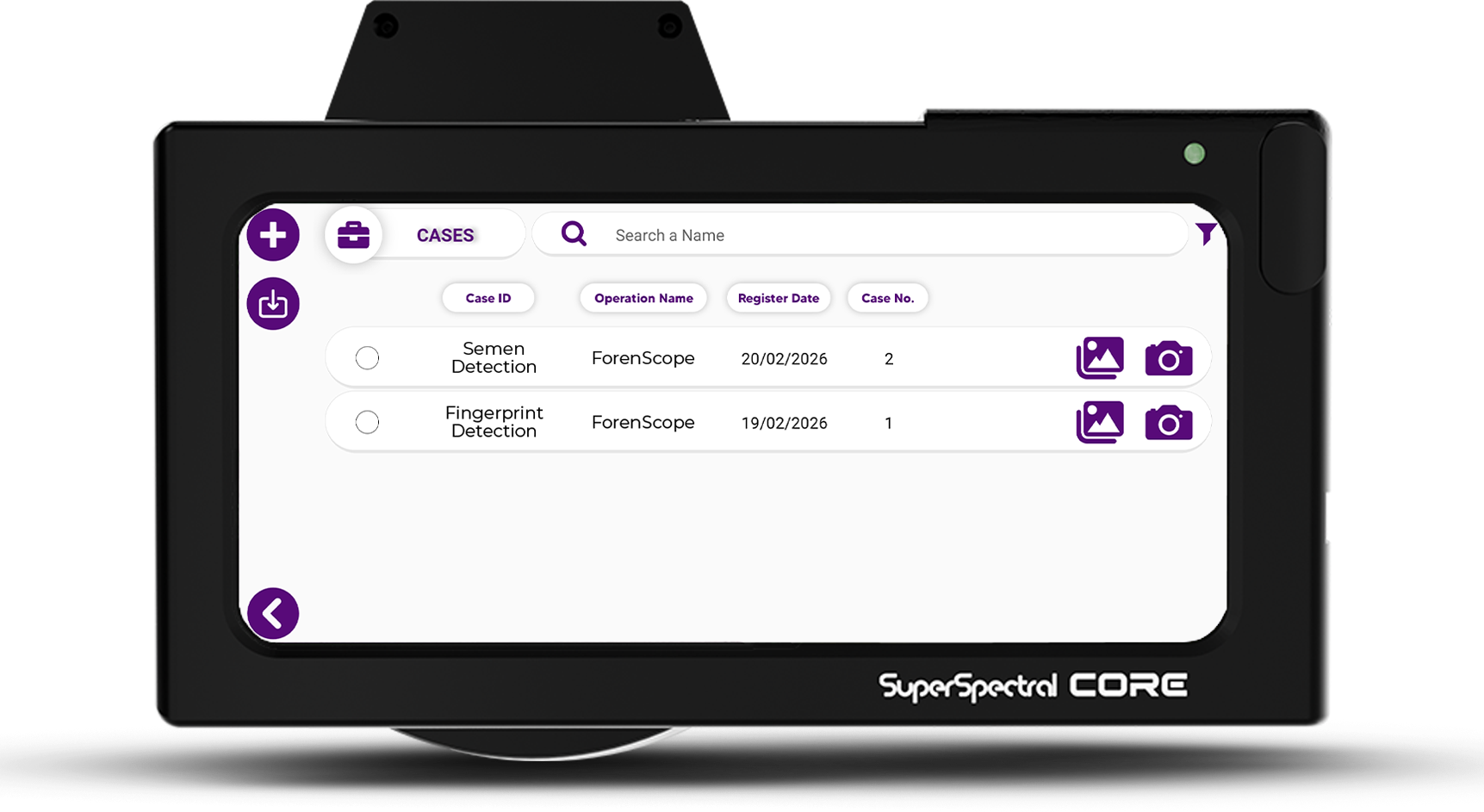

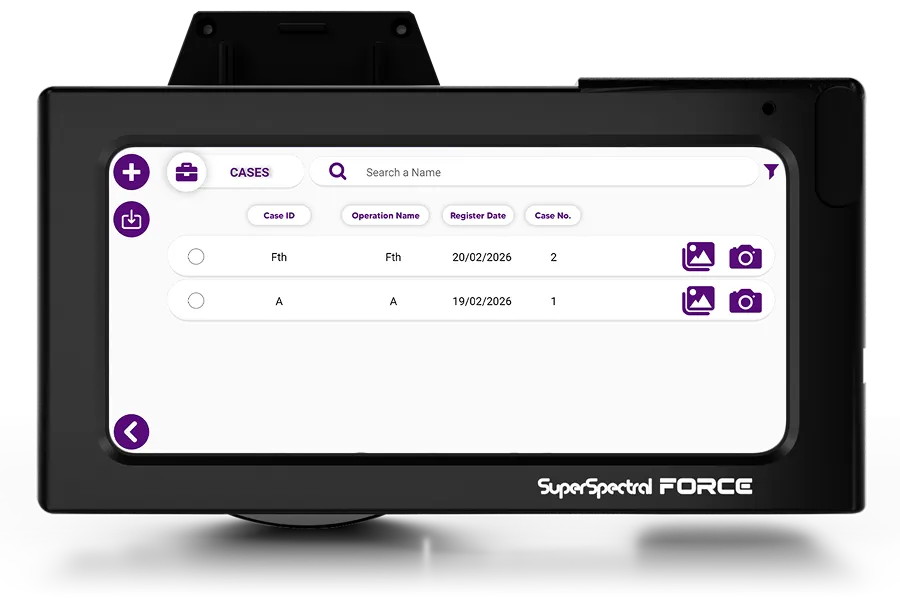

Case Management
System

case management system

UV / VIS / IR 200 MP
SuperSpectral Sensor

AUTO SMART SEARCH

RAW Photo
Imaging

Minutiae Calculation & Identification On-Site

Live Ruler for Immediate Fingerprint Measurement

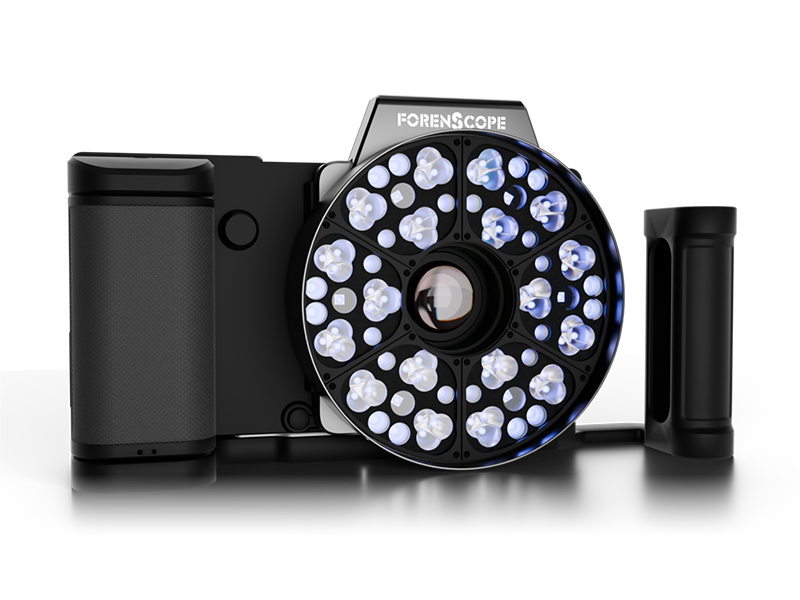

power-macro-light

Power Macro Lens

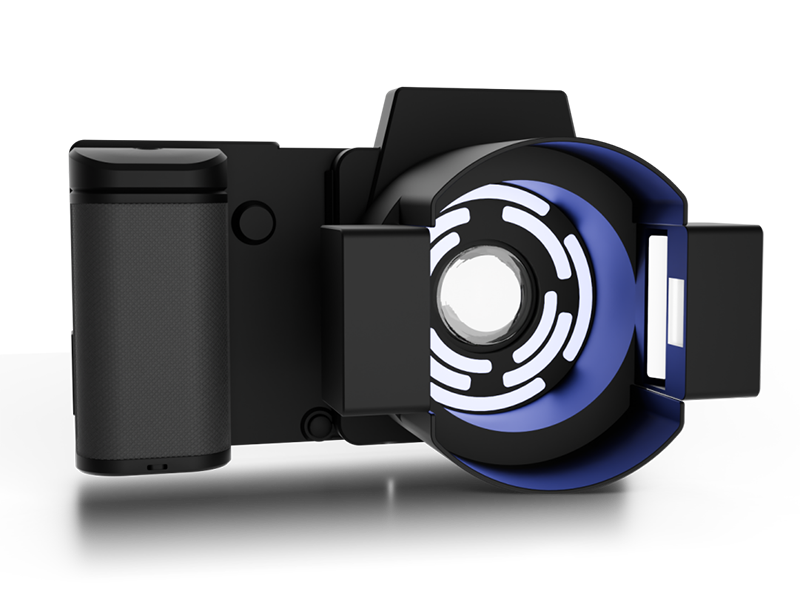

SS FORCE Macro Micro Light

Macro-Micro Lens

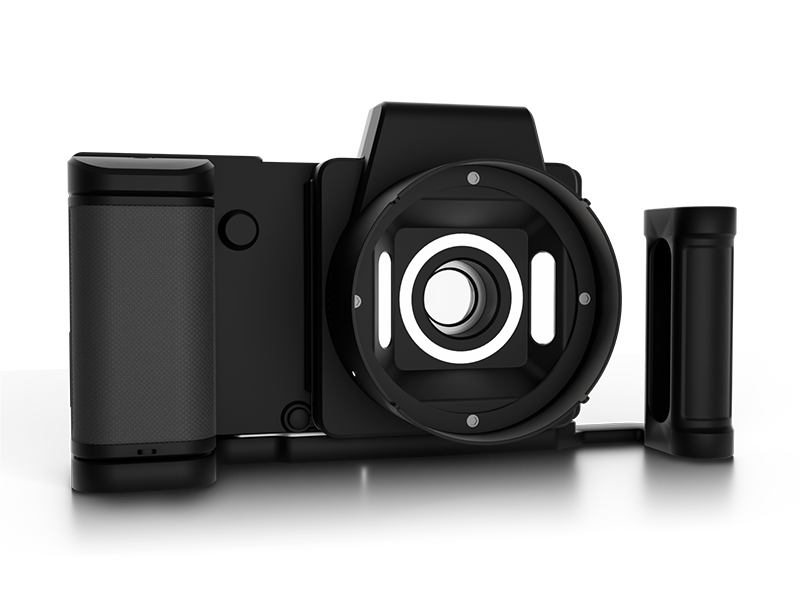

antistokes-light

IR-Antistokes Lens

contactless-light

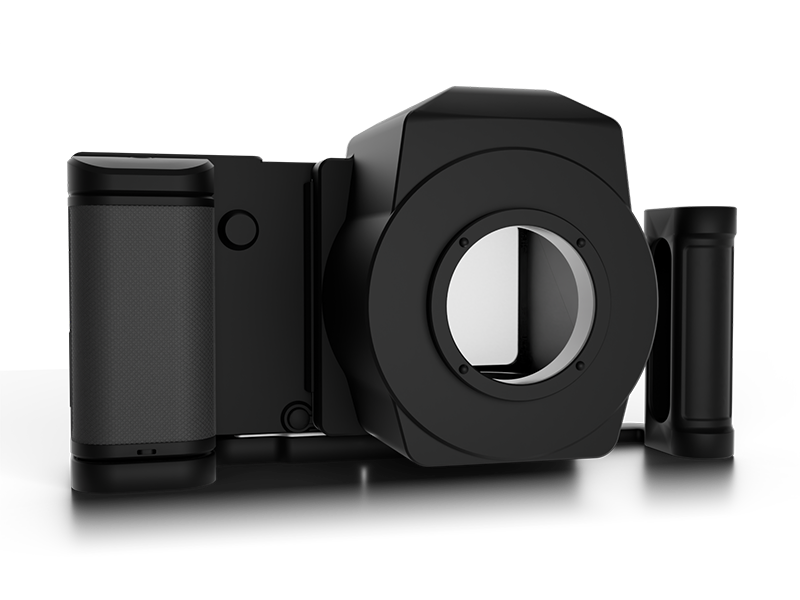

Contactless Lens

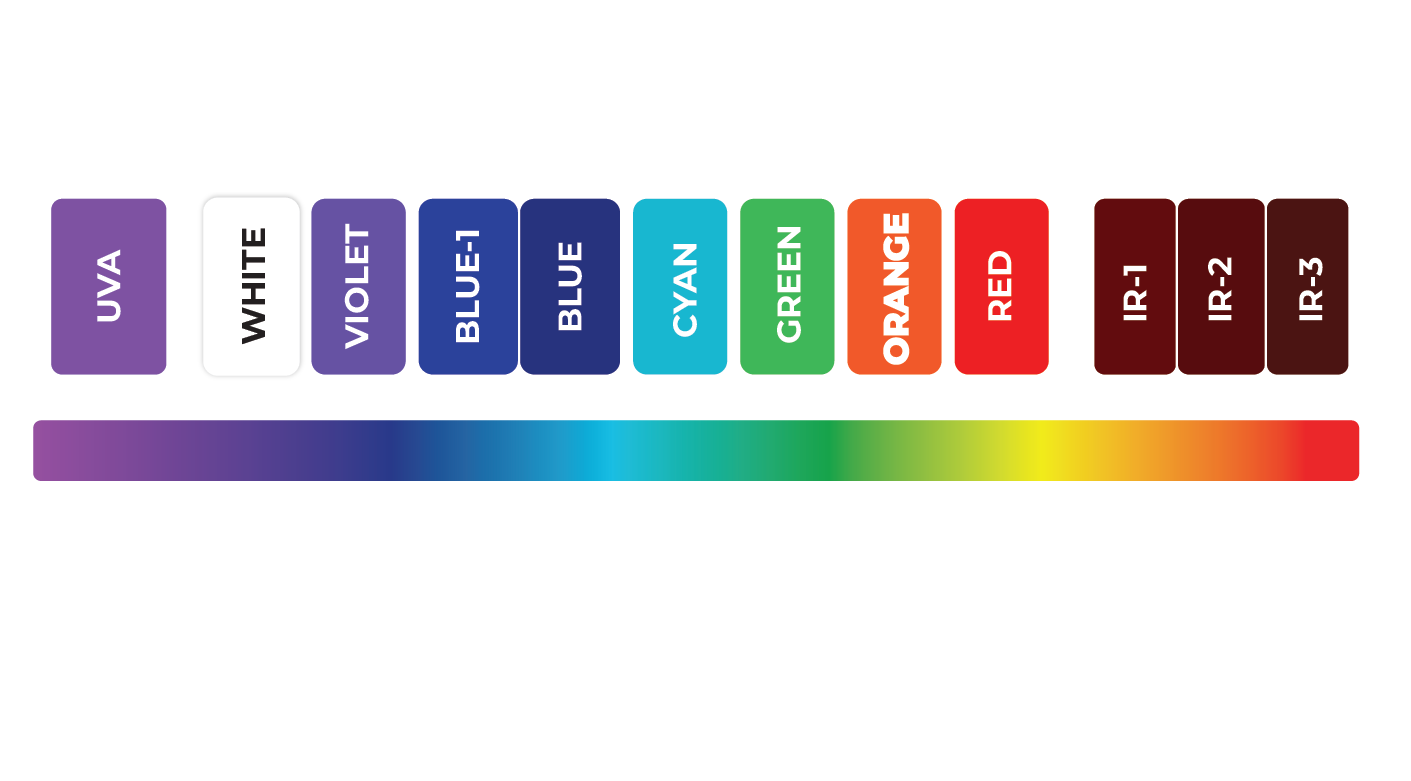

SUPERSPECTRAL FORCE SPECTRAL RANGE

TECHNICAL

01

Imaging Functions

• 12 different lights
• 12 different filters
• 16.7 million light combinations
• Built-in lenses for close-range and long-range imaging
• Optional lenses for fingerprint examination

02

Software

• Android-Based
• ForenScope’s Case Management System

03

Battery

• Replaceable Battery
• 4–5 hours of continuous operation
• Single-port charging

04

Export and Connectivity

• USB Output
• PC Connect Function
• Mini HDMI Port
• WiFi-Bluetooth-GPS

05

Storage

• JPEG photo capacity: 15,000+
• RAW photo capacity: 10,000+
SuperSpectral Force FAQ

The SuperSpectral Force is a forensic imaging device used at crime scenes and in forensic laboratories to detect and document evidence including blood traces, body fluids, GSR particles, fingerprints, drugs, accelerants, and more.

200 MP camera, 330-1100nm spectral range, motorised ring filter system with 12 filters, 4 different lens options, Android OS, GPS, autofocus, and a battery with 4-6 hours of life.

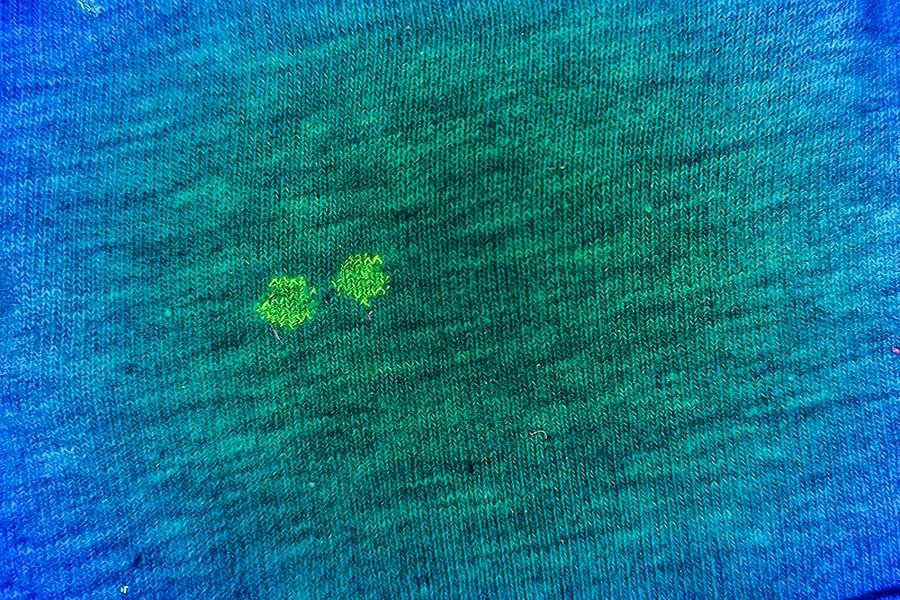

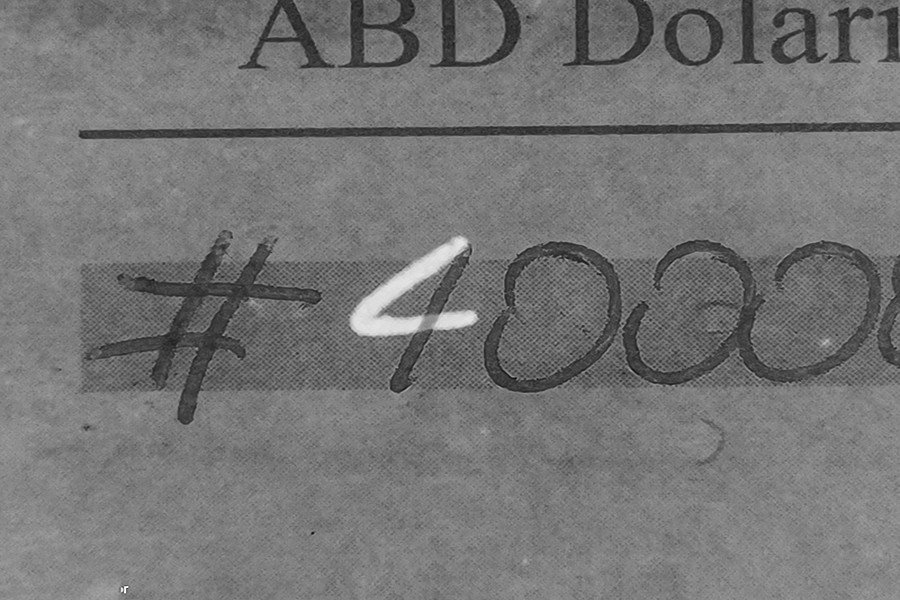

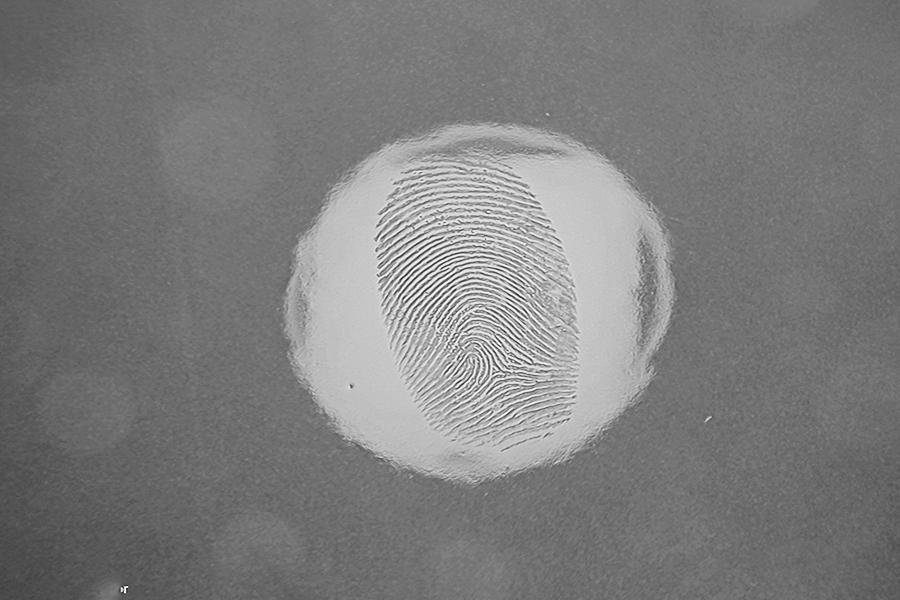

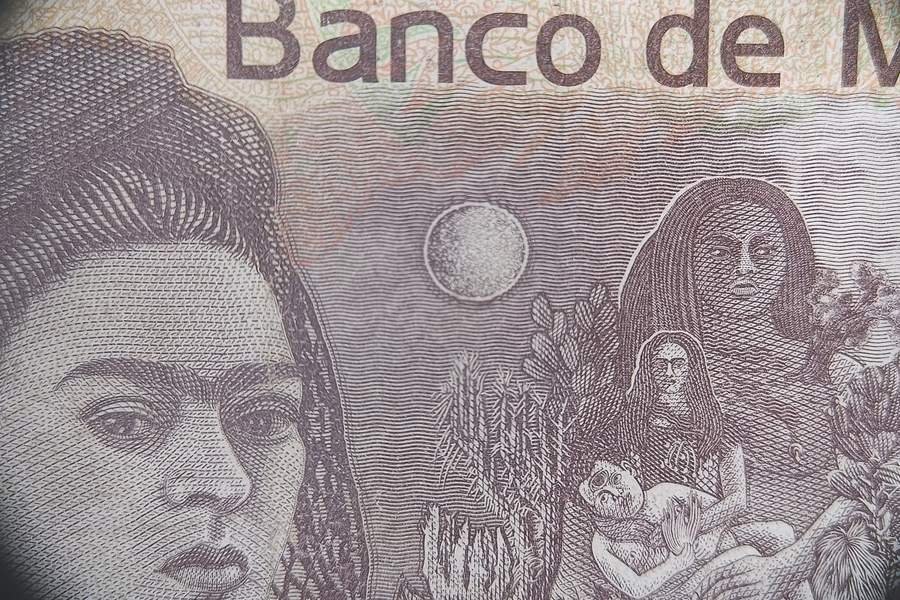

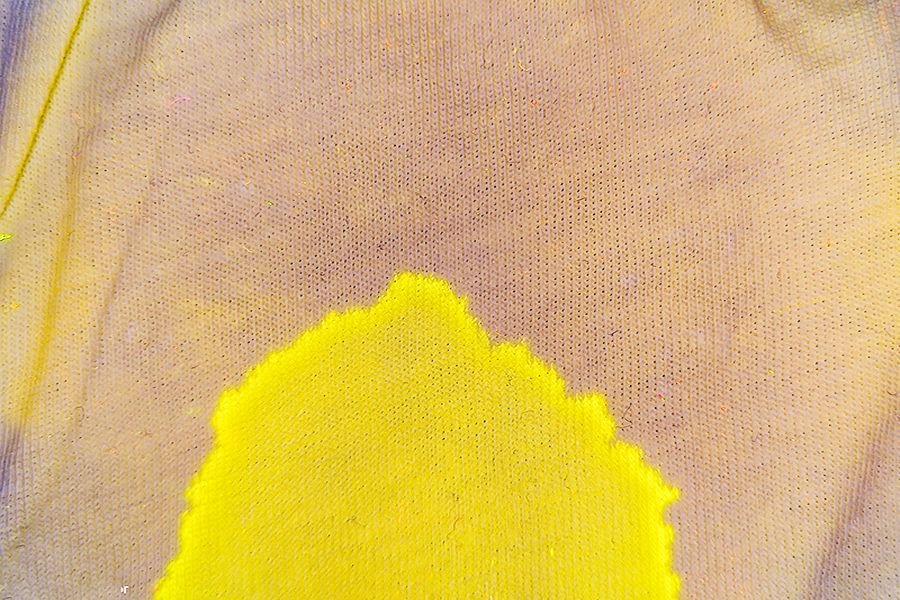

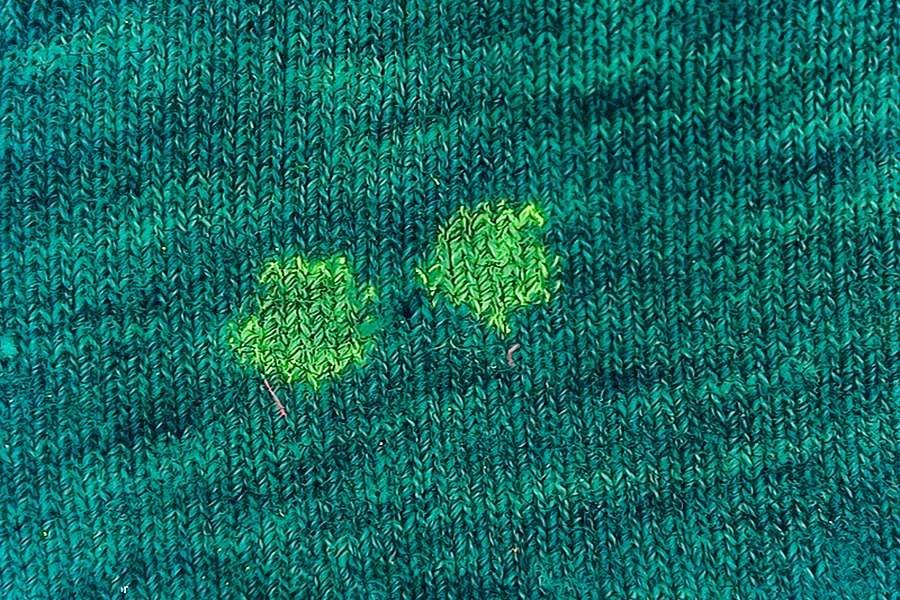

It detects a wide range of evidence including blood traces, semen, body fluids, GSR particles, bone, hair, fiber, drugs, accelerants, fingerprints, and documents, all on light, dark, and multicolored backgrounds.

It includes a case management system, GPS, data stamps (location, time, date, filter and light info), and supports export via Wi-Fi, Bluetooth, USB, Mini HDMI, and SIM.

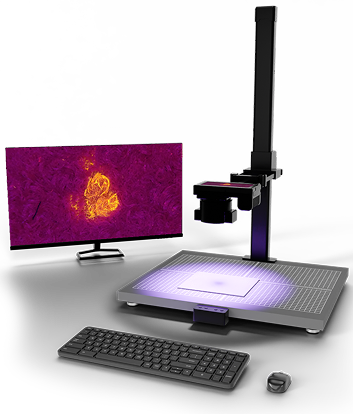

Yes. It weighs approximately 1.5 kg and comes with a tripod for crime scene use or a copy stand for laboratory use.

Yes, the SuperSpectral Force has an Auto Smart Search feature along with a dedicated Smart Button. This allows investigators to automatically scan and identify evidence without manually cycling through every light and filter combination, saving significant time during an investigation.

Yes. It combines imaging, lighting, filtering, documentation, and case management in a single handheld device.

It covers a spectral range from 330nm to 1100nm, spanning UV, visible light, and infrared, which goes beyond standard forensic imaging tools.
